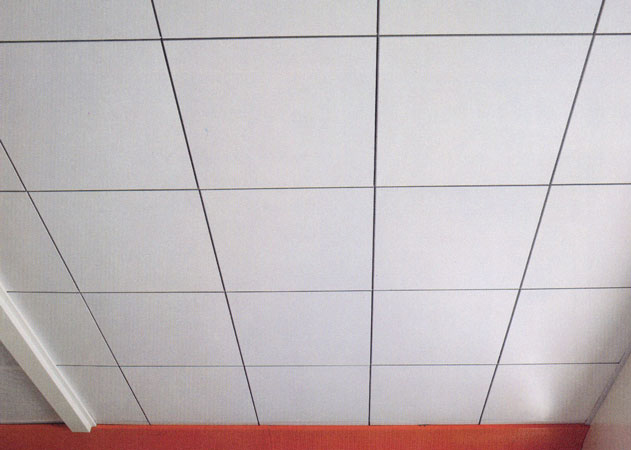

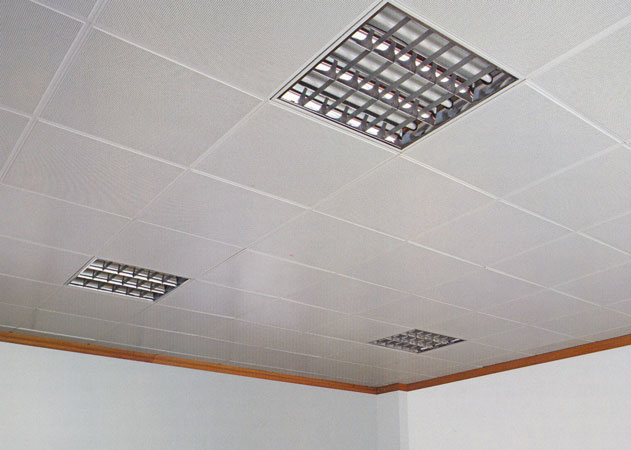

Square tile ceiling series (closed frame):
In harmony with the surrounding environment, it creates marvelous decoration effects.
Fixing method: 1) fix the triangular frames according to the sizes of Alpha aluminum ceiling panels and adjust the frames, using L shaped angles to support and fix the panels at positions against the walls.
Size: 600x600mm, 500x500mm, 400x400mm,
300x300mm, 300x600mm, 600x1200mm.
Thickness: 0.5-1.0mm
|
Square tile ceiling series (open frame):
Clear and pleasant pattern brings out elegant design. They are widely used for decoration for offices, shopping malls, train stations, airports, etc.
Size: 600x600mm.
Thickness: 0.5-1.0mm
|

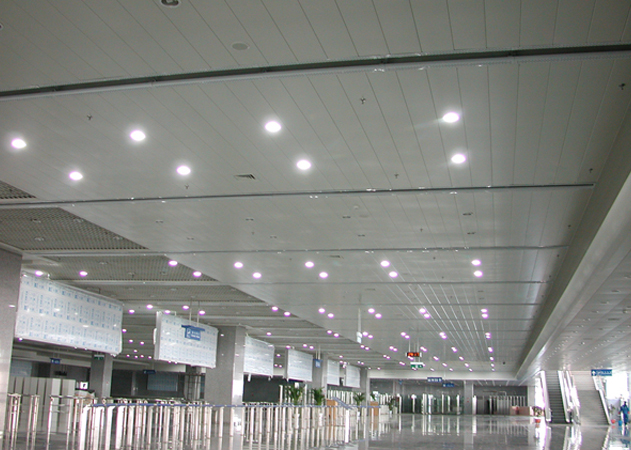

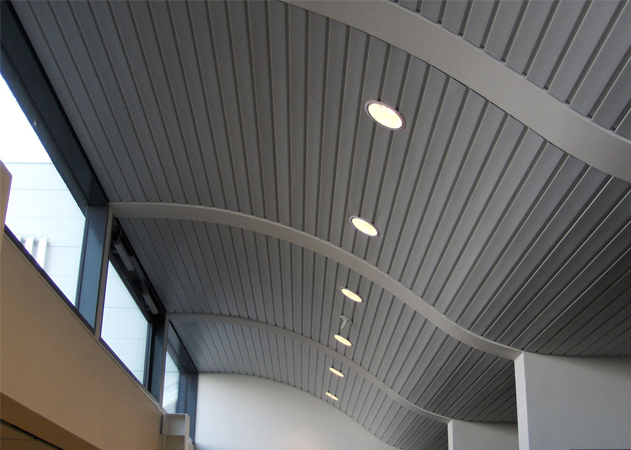

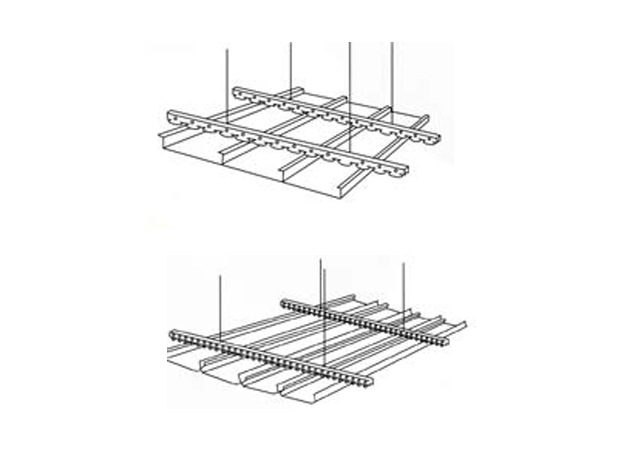

H-shaped strip panel series:
This kind of ceiling is flat, natural and elegant. The features of windproof and anti-vibration grant you the sense of safety.
Size: 150x1000-6000mm, 200x1000-6000mm,
300x1000-6000mm.
Thickness: 0.5-1.0mm
C-shaped strip panel series:
Many specifications and color available, so rich combinations can be achieved to suit your needs.
Size: 75mmx1000-6000mm, 100x1000-6000mm,
300x1000-6000mm.
Thickness: 0.5-1.0mm
|
Combination ceiling series
Eye-catching effect can be achieved by combination of different sizes and colors.
Size: 100x100mm, 150x150mm, 200x200mm,
100x600mm, 150x600mm, 200x200mm.
|
Well shaped combination ceiling series:
Fixing components: well framed, well cover, strip panel, little square box, spring tee runner, hanger bracket, connectors and L shaped angles.
Size: 600x600mm, 1100x1100mm.
|

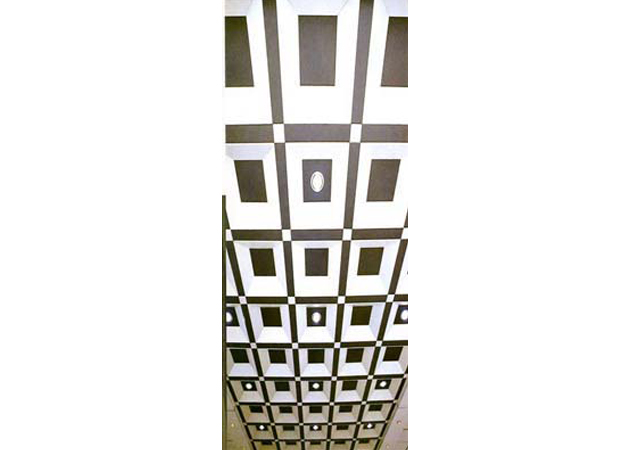

Cell (trellis) ceiling series:
Cell ceiling is combined with main carrier and horizontal carrier with features of fresh style, three-dimension and good ventilation. It allows aircon outlet and the vent installed behind the ceiling. It is widely used in metro stations, shopping mall and airports.
Cell size: 75x75mm, 100x100mm, 110x110mm, 125x125mm,
150x150mm, 175x175mm, 200x200mm and 300x300mm.
Height: 35cm, 40cm, 50cm.
|
Non-Standardd Series
This tailor made item, which is made as per customer's special needs to create a unique design and special effect.
|
